Product Description

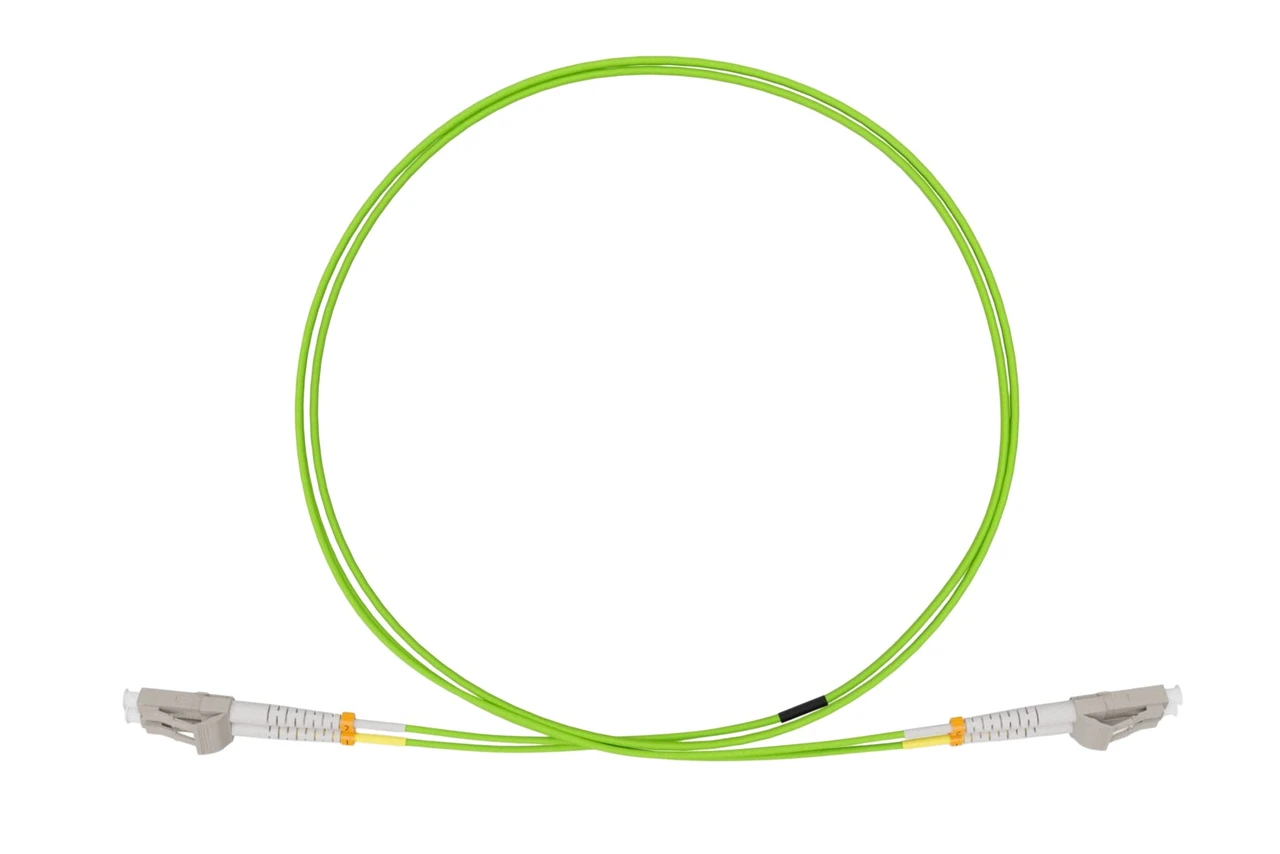

OM5 LC/LC UPC LSZH/OFNR Dual-Rated Multimode Fiber Optic Patch Cable Lime Green
This duplex multimode fiber optic patch cable features LC to LC UPC connectors and uses OM5 50/125µm laser-optimized multimode fiber, designed for ultra-fast data transmission and future-ready network scalability.
The lime green jacket identifies it as OM5 fiber, optimized for Short-Wavelength Division Multiplexing (SWDM), allowing multiple wavelengths to travel simultaneously for greater bandwidth efficiency. It’s backward compatible with OM4 and OM3, making it ideal for upgrading existing multimode infrastructure.
Key Features:
- Connector Type: LC/LC Duplex UPC
- Fiber Type: OM5 Multimode (50/125µm)
- Jacket Rating: LSZH / OFNR Dual-Rated (Riser)
- Jacket OD: 2.0 mm
- Color: Lime Green
- Fiber Count: 2 Strands
- Polish Type: UPC to UPC
- Wavelength: 850nm&1300nm
- Insertion Loss: ≤ 0.3 dB
- Return Loss: ≥ 35 dB
- Supports: 10G / 40G / 100G / 200G / 400G applications
- SWDM Compatible
- Backward Compatible: OM4 / OM3
- Ideal For: Data centers, SANs, high-density patch panels, enterprise backbone links
Performance Highlights
OM5 is engineered for higher bandwidth over short-to-medium distances:
- 10GbE: up to 550m
- 40/100GbE: up to 150m standard multimode
- 40/100GbE with SWDM: up to 450m
