Product Description

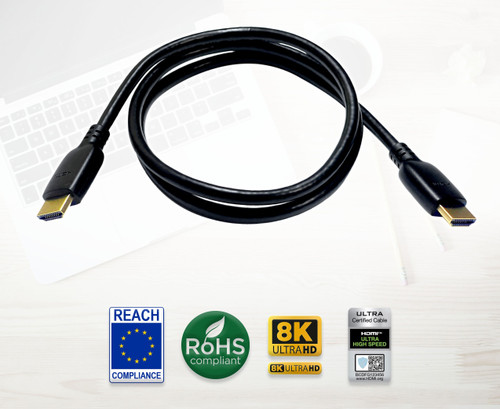

PLENUM-RATED (CMP) 8K/UHD HIGH SPEED HYBRID ACTIVE OPTICAL FIBER HDMI® CABLE 2.1
- HDMI 2.1; Support Dynamic HDR, EDID, HDCP, 3D, CED, eARC, VRR.
- Fiber optical wire replaced to revise the overall performance.
- Mixed copper wire and fiber core for hybrid performance, suitable for long-distance applications.
- Support multiple audio channels (DTS-HD Master Audio, Dolby TrueHD, Dolby Atmos).
- Plenum rated (CMP) for installation into Air Plenum spaces such as the space above a suspended ceiling or below a raised floor.
- Cable thickness in OD 4.8mm.
- Resolution: up to 8K@ 60Hz; Chroma sub-sampling in 4:4:4, 8 bit.
- Data transmission rate up to 48 Gbps.
- Gold-plated connector provides superior transmission, high reliability, and durability.
- Reduce EMI/RFI interference.
- UL listed, All relevant materials complied with RoHS directive.
- Packing with anti-static bag.
- All series are 100% Error Rate Testing (using an error rate tester) and 100% Real Device Testing (using a computer and a TV).
Notes:
- This active HDMI cable is NOT bi-directional. The cable is labeled with DISPLAY and SOURCE on two sides. SOURCE port connector needs to connect devices like Blu-ray players, computers, game consoles, or other devices and DISPLAY to TV or monitor.
- The package of 150 ft. unit comes with inner reel.
- Hybrid cable with copper and fiberglass core. The cable is delicate and should not be excessively curved, as this may damage the fiber core and cause malfunctions.
- Some end users' display hardware may have lower performance capabilities for 4K/8K or ≥120Hz video displays, which will cause lower efficiency in cable performance.
Conductor: (50/125um FIBER*4C+MID)*IC+7 /0.08Tx3C+7/0.127T*(2C+1C)+7/0.20Tx1C+F+D+AL.
Cable OD: 4.8mm.
